April 2013~December 2013

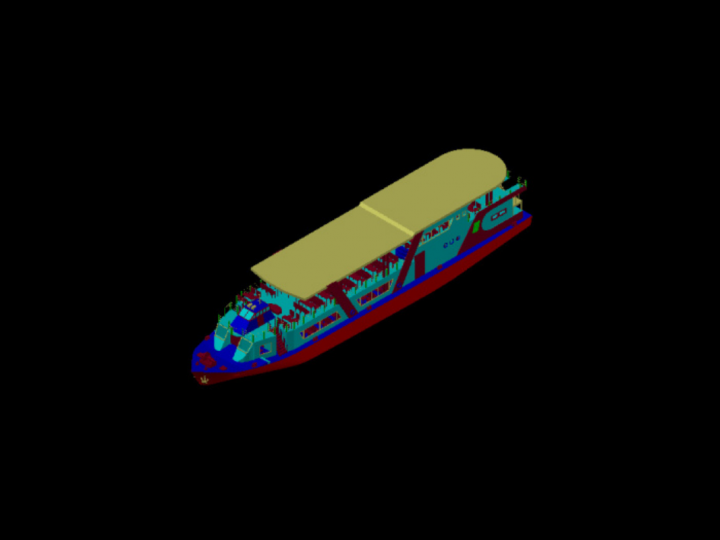

The conceptual general arrangement and rendering for a 46m River Dining Vessel is designed by C. Than and Associates Marine Design Firm upon request from a famous Travel and Tour Company in Yangon. I was responsible to draw the general arrangement of this vessel; trying to fulfill the client’s needs (with 4 major revisions) whilst abiding the rules and regulations. The 3D Rendering was made by my colleague, Ko Htut Paing Thwin.
Since the design is still the property of C. Than and Associates, I will not be able to upload high-resolution photos.
Preliminary Calculations such as Power Requirements, Fuel Consumption, and Cost Estimation were calculated while also sending out Quotations for Propulsion Engine, Air Conditioning Systems, Generators, Interior Designs, Furniture, Kitchen Appliances and Utilities, Dinnerware, etc.
